The Family Truckster: Reviving My Dad’s 1994 Chevrolet K1500 Pickup

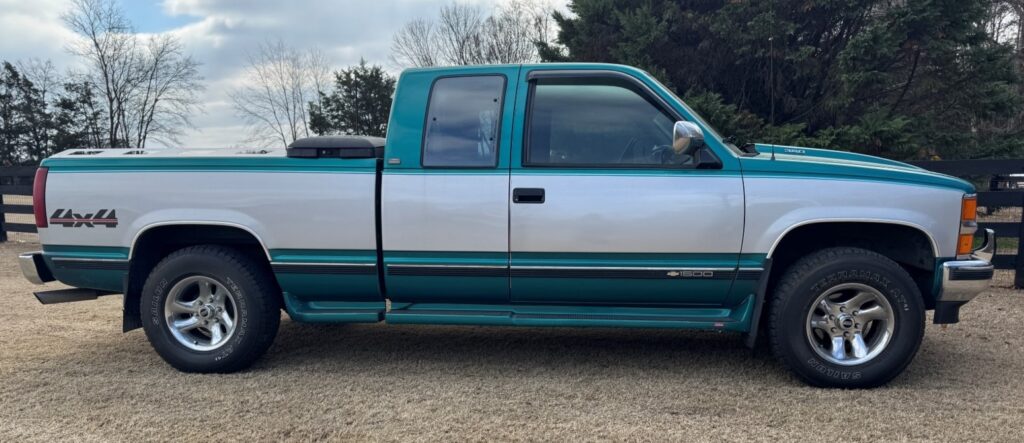

Some trucks are just transportation. Others become part of the family. This 1994 Chevrolet K1500 has been part of ours for more than three decades—and after years apart, it finally found its way home.

My dad, Urb Schenk, ordered the truck over Thanksgiving weekend in 1993 from Kenny Kent Chevrolet in Evansville, Indiana. He knew exactly what he wanted: a four-wheel-drive, extended cab truck in teal and silver two-tone paint with the chrome grille that defined Chevrolet trucks of the era.

Dad never seriously considered a Ford or Dodge. He loved the clean lines of the GMT400 platform and trusted Chevrolet’s reputation for durability. To him, this wasn’t just another pickup; it was the truck he had already pictured in his driveway.

The K1500 arrived in January 1994. On a freezing Saturday morning—barely five degrees outside—Dad headed to the dealership to bring it home. Before signing anything, he slid underneath it on a creeper to inspect every inch. He had already requested the truck be undercoated before delivery, and he wanted to be certain everything was exactly right. Aside from a small paint defect on the roof that only Dad ever noticed, it was everything he had hoped for.

At the time, the extended cab was still a relatively new concept for Chevrolet buyers. Dad’s reasoning to get one was simple: family. As he put it, “Damn kids. Needed more room.” That extra space made it the perfect vehicle for camping trips, Boy Scout outings, and hauling all five of us wherever we needed to go.

Like any proper K1500, our truck earned its keep. It hauled trailers loaded with four-wheelers into Kentucky, rescued stuck vehicles from ditches, and got us through winter weather thanks to its four-wheel-drive and a set of studded snow tires. Dad remembers testing the truck’s traction just a week after bringing it home by tying it to a pole in the snow to see how the four-wheel-drive system behaved. It passed.

Unlike many OBS Chevy owners, Dad kept the truck pretty much stock, maintaining it meticulously. He did add custom overload springs for heavy hauling that are still on the truck today, plus some easily reversible items like American Racing wheels, bed rails, and paint-matched side steps.

The K1500 Goes—But Not Far

In 2022, Dad decided to sell the truck. I helped him put together an eBay listing to get some attention from buyers across the country. It found one right in our own backyard.

The Chevy caught the eye of family friend Mike Elpers, who was looking for a first truck for his son, Grant. Mike purchased the truck through the eBay listing and came to pick it up shortly after. From that day forward, the truck stayed exactly as it was, right down to the floor mats.

The K1500 faithfully served Grant through his ownership, and in 2026 I had the opportunity to buy it back from him. The funny part of the story is that my brother, Thomas, had recently married Maddi Elpers, Mike’s daughter, so we were one big happy extended family. In a roundabout way, that old Chevy never really left us.

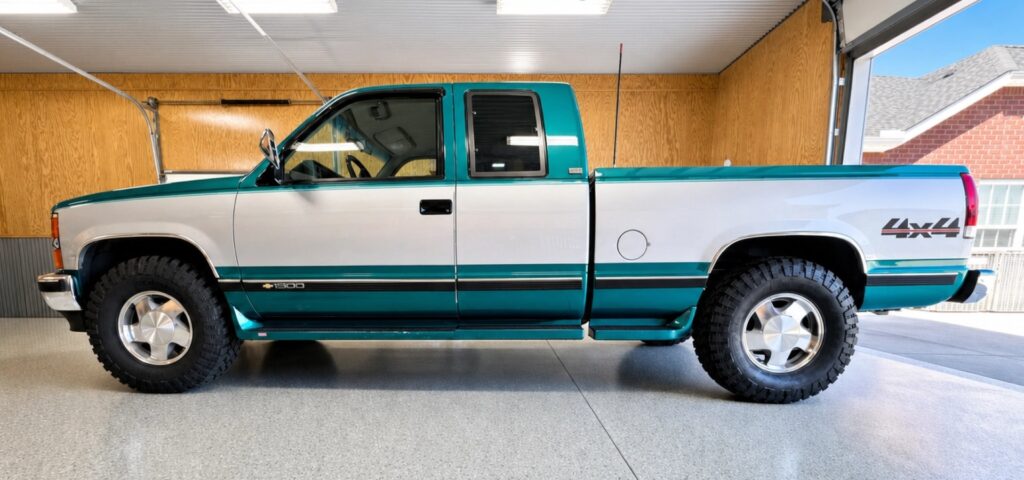

I rolled the Chevy into the garage and immediately got to work transforming it from a well-used survivor into a revived pickup ready to serve once again.

Frame

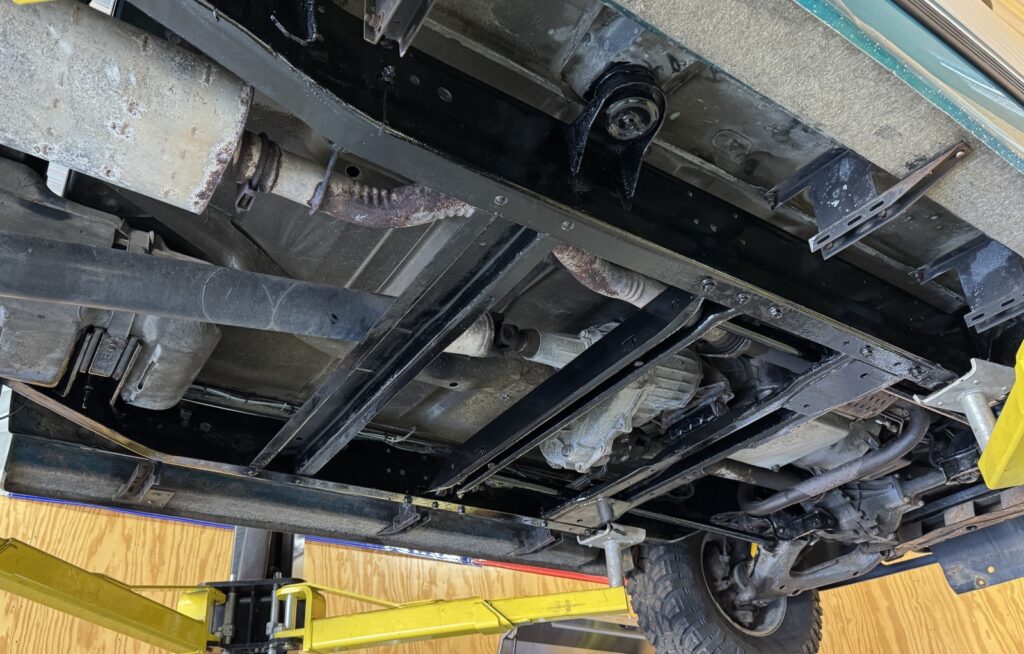

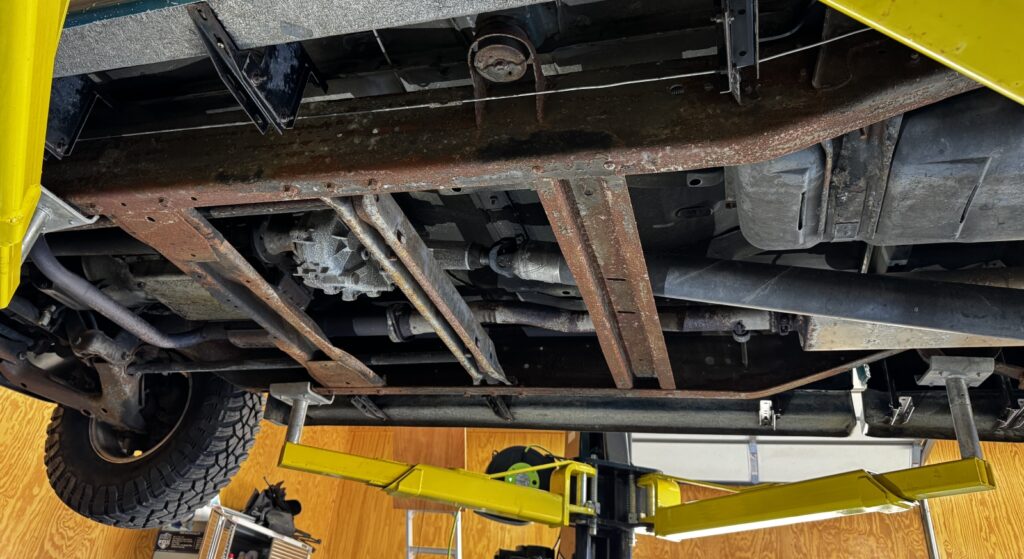

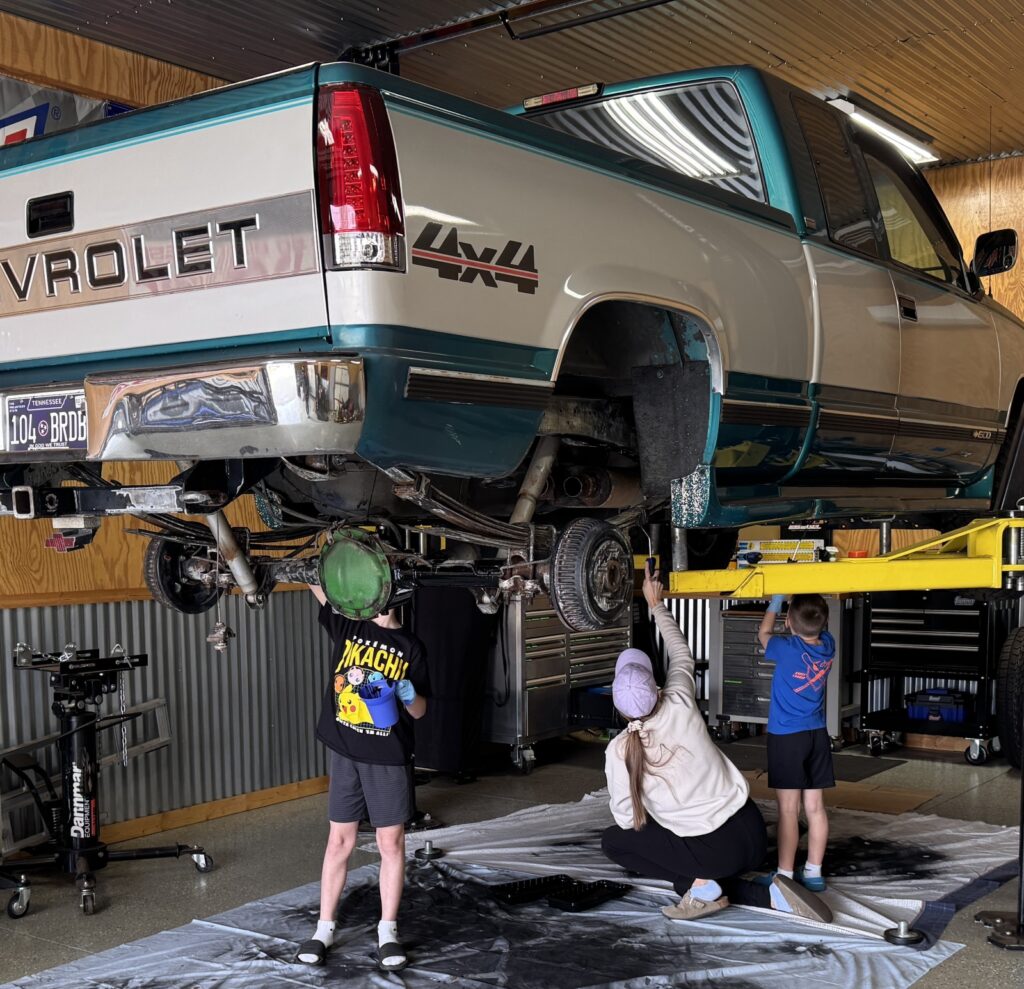

Considering the K1500 is over 30 years old with 260,000 miles on the clock, it was in really good shape. There was the inevitable surface rust on the frame and rear axle, so I removed the loose stuff and painted them with KBS Coatings All-In-One chassis paint system. The three-step system includes cleaner and degreaser; metal prep; rust preventative/sealer; semi-gloss black topcoat; and thinner. The topcoat looks great and was easy to apply.

Shocks

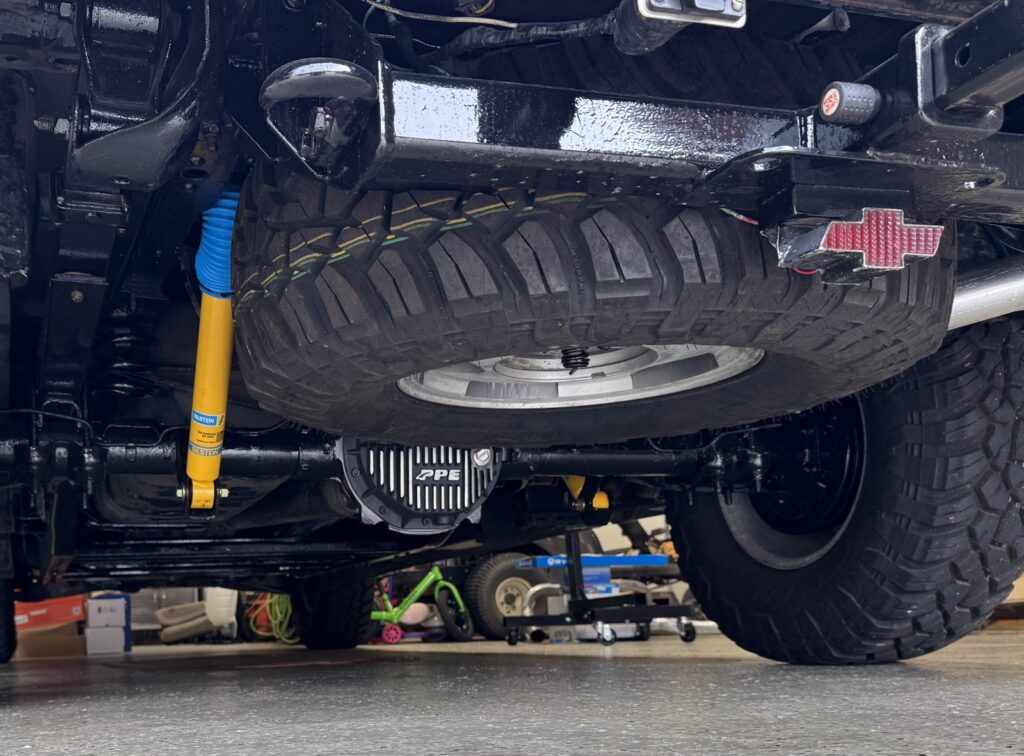

A fresh set of Bilstein B6 4600 Series shocks restoring the controlled feel these trucks had when new. The gas-charged monotube shocks have velocity-sensitive valving that allows them to react instantly to changing road conditions. They really improved the K1500’s ride and handling.

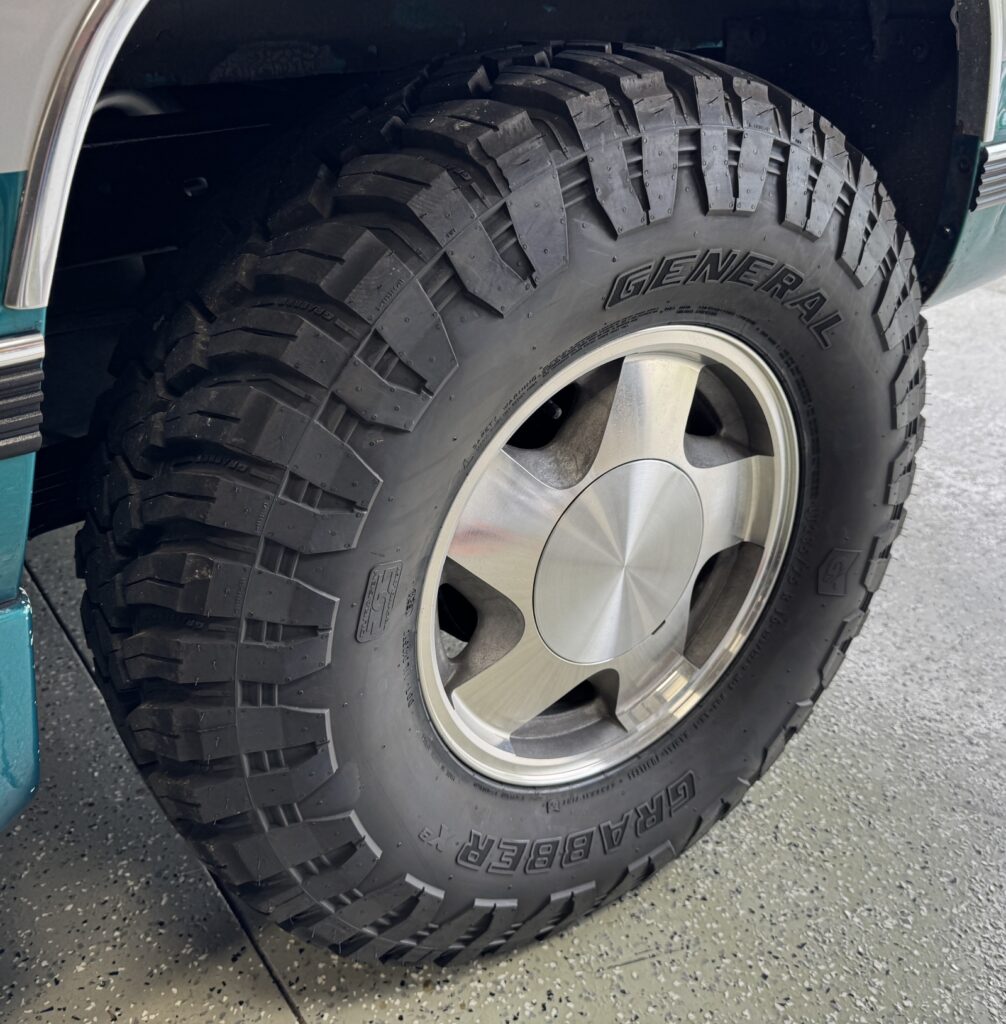

Wheels and Tires

The Chevy still had the American Racing wheels Dad put on years ago. I like the factory ‘sawblade’ wheels; they just look right on a GMT400. I found five of them (one replaced the rusty steel spare wheel) on Facebook Marketplace, which I stripped and polished back to life.

I also replaced the grubby tires with General Grabber X3 tires. They have an aggressive tread design that provides good traction off- and on-road, but are still pretty quiet on pavement. I also added 1.25-inch wheel spacers to move the rear wheels and tires further out for a better stance.

Drivetrain

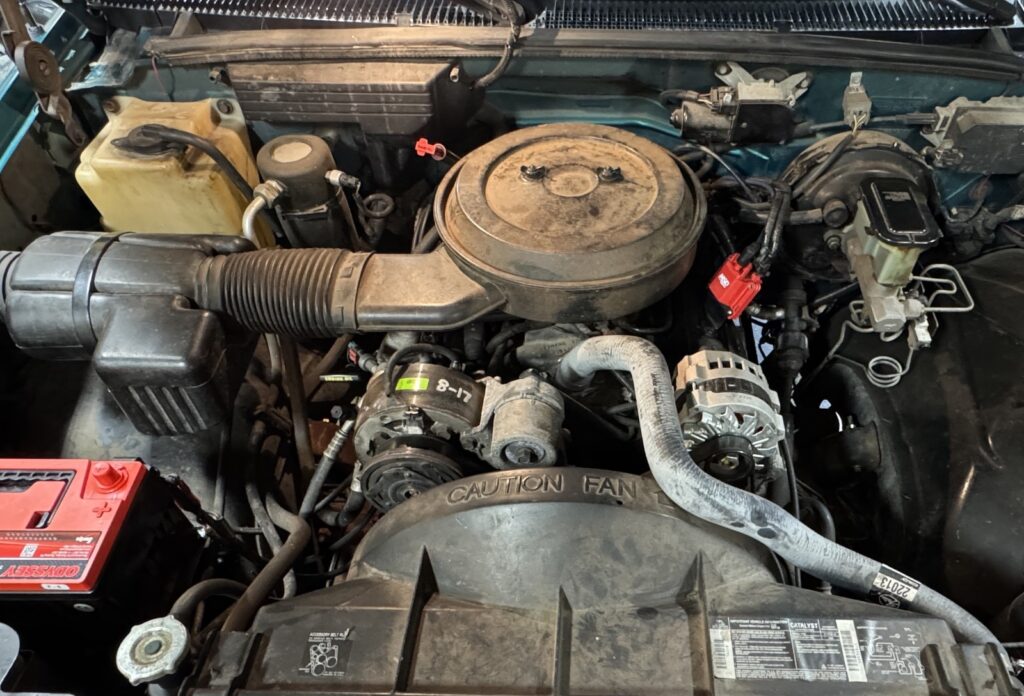

The drivetrain was in good shape, so all I had to do was some basic maintenance. I refreshed the 350ci TBI engine’s ignition system with a new MSD Blaster coil, Summit Racing 8.5mm ignition wires, and ACCEL C-Cut spark plugs. The coil puts out 44,000 volts of spark energy, which improved cold starting and seemed to smooth out the idle a bit. The Summit Racing wires have a low 50 ohms of resistance so more spark gets to the ACCEL spark plugs, which have a short profile that provides enough clearance to use a standard socket for installation.

The 4L60E automatic transmission’s fluid pan and the 10-bolt rear axle’s differential cover were leaking, which gave the me perfect excuse to replace them with heavy-duty PPE parts. The cast aluminum pan and the cover hold more fluid than the factory ones, and have cooling fins to help reduce fluid temperatures for longer transmission and differential life. I sealed both with LubeLocker gaskets. The elastomer beading on the gasket face provides a dry, leak-free seal without the need for a sealant like RTV silicone.

Nobody likes replacing batteries, especially me. I put an Odyssey Extreme battery in the K1500 so I wouldn’t be doing it again for a long, long time. It puts out 850 cold cranking amps and holds more lead plates than ordinary batteries. That means more cranking power and three times the life of conventional batteries.

Fluids

I always change the fluids in new-to-me vehicles, which the Chevy pretty much was. I used Hot Shot’s Secret full synthetic oils and fluids to reduce heat and friction for longer component life:

Red Diamond 5W30 motor oil
Adrenaline automatic transmission fluid
Blue Diamond Severe Duty 75W90 gear oil

I added Hot Shot’s Secret Tick Fix+ Protect to the engine oil to clean any carbon buildup, varnish, and other gunk from the valvetrain. I also added a bottle of Hot Shot’s Extreme Fuel System Additive to clean deposits from the fuel injectors and upper engine.

Exterior

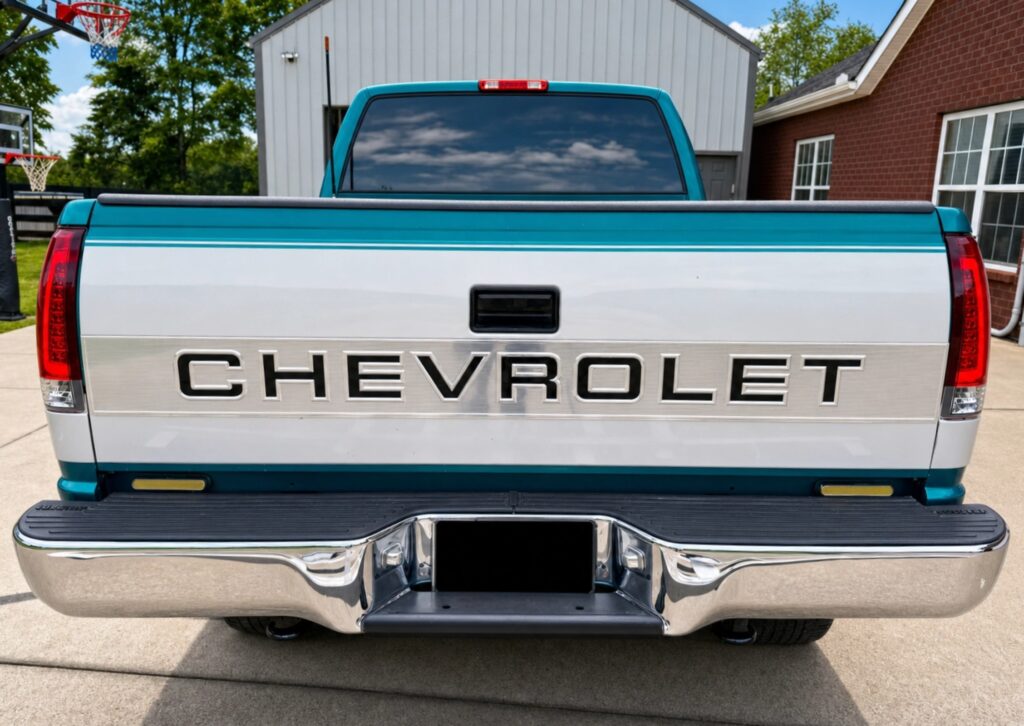

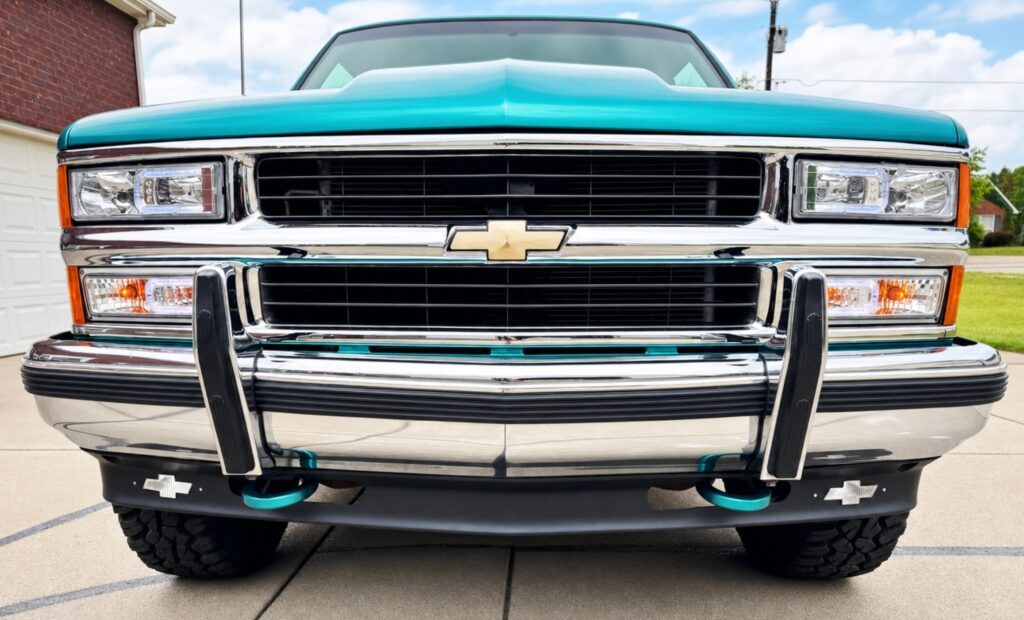

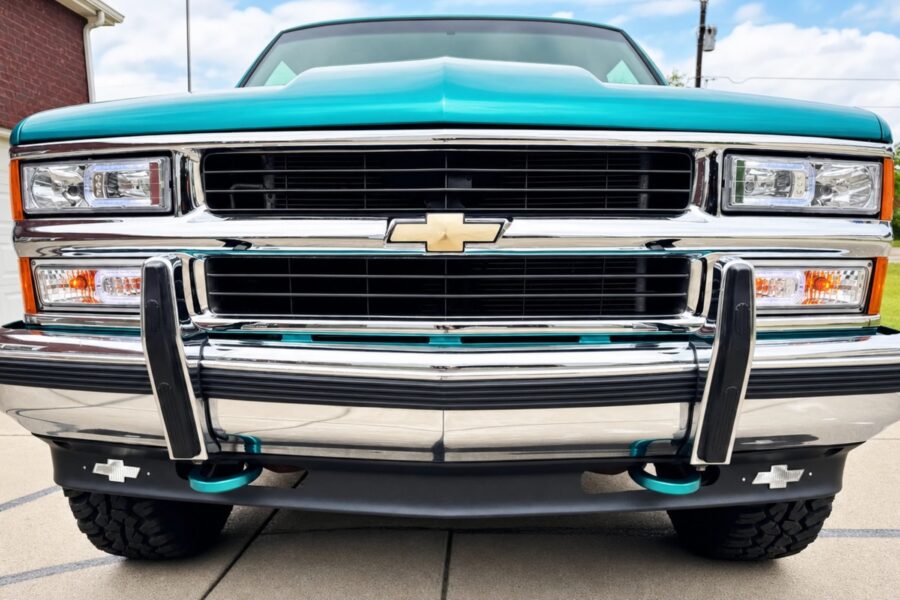

30-odd years had taken their toll on some of the K1500’s exterior bits. I replaced the factory chrome grille and front bumper impact strip with Brothers Trucks reproductions. I also replaced the scuffed-up tailgate molding with an OER reproduction, and added fresh side moldings to restore the crisp, upscale look that made higher-trim GMT400s stand out in the 1990s.

The truck’s headlights and taillights were scratched and cloudy. Since I like to see where I’m going at night, I replaced the headlights with new Anzo housings and Summit Racing LED bulbs, and the taillights with Anzo LED taillights. They have OEM type connectors for a plug-and-play installation, and the LED lighting dramatically improved nighttime visibility.

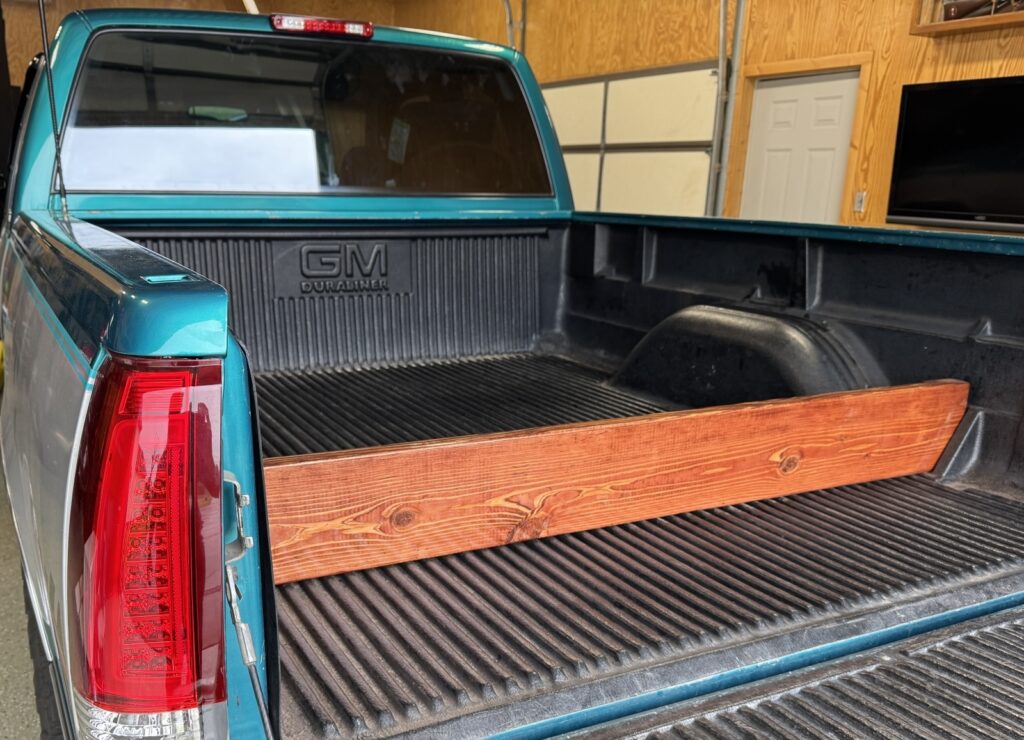

The final touch was a bed divider. I always remembered my dad had a bed divider made from white vinyl. I quickly whipped up a new divider from a piece of pine board from my local home improvement store. Some stain and three coats of polyurethane later it was ready to place in the bed.

What’s Next

I’m not finished with my K1500 rehab. There is some suspension, exhaust, and drivetrain work to do, plus some performance upgrades that I’m not ready to talk about yet. You’ll have to wait for the next installments of The Family Truckster to find out what’s coming!

Parts List

Chassis and Suspension

Bilstein B6 4600 Series Shock, front BSN-24-104050

Bilstein B6 4600 Series Shock, rear BSN-24-020435

General Grabber X3 Tire, 285/75R-16 GTI-04494930000

Overland Vehicle Systems 1.25-inch Rear Wheel Spacers OVS-50-0031

KBS All-In-One Chassis Coating Kit KCO-5750202

Drivetrain
MSD Blaster Ignition Coil MSD-8226

Summit Racing™ Race Series 8.5mm Ignition Wires SUM-888858

ACCEL C-Cut Spark Plugs ACC-8198

WIX Fuel Filter WIX-33481

Odyssey Drycell Battery ODY-3478PC1500DT
